XRef Transparency

by Jennifer
(Centennial, CO)

XRef Transparency

XRef Transparency

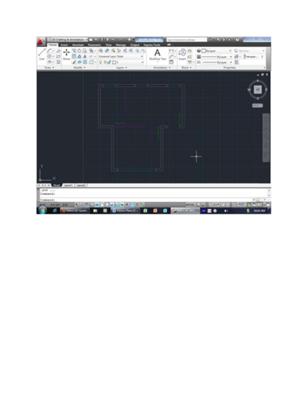

I am just starting to use AutoCAD 2011 after spending years using 2006. When I insert an XRef into my model space it shows up "grayed out". I am not doing anything different from the commands used in 2006... This would appear to be a new feature of 2011.

Is there a way to turn this on/off or adjust for the degree in which it is "grayed out"?

Comments for XRef Transparency

Average Rating starstarstarstarstar

Click here to add your own comments

Sep 29, 2011
Rating
starstarstarstarstar 		XDWGFADECTL
by: Joe

Yes there is...

Go to: Tools > Options > Display > Fade control Xref dispay

Slide the bar all the way to the left to get rid of any XREF fading or adjust accordingly to how much you want the XREF faded.

You could also type XDWGFADECTL at the command prompt and enter -90 to get rid of any fading.

You can also adjust the number to get the fading to your liking. A positive 90 would get your XREF to maximum fading.
