AutoCAD - Border Poly or bpoly command

by Avinash Ketkar
(India)

Create a closed polyline in AutoCAD with Border Poly or the bpoly command

Create a closed polyline in AutoCAD with Border Poly or the bpoly command

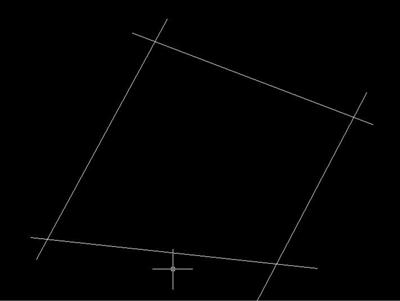

If you have several segments with overshoots as shown in the image attached and you want to clear the overshoots and make a closed polygon, you will probably use "trim" command.

There is an alternative way to do this faster.

Use the bpoly command.

After using this command, a dialog box opens and you have to pick a point inside the closed area.

Please note that this works only for "closed" areas.

A polygon is formed at the boundary of closed area.

You can now erase the original entities and use the closed polygon thus formed.

Comments for AutoCAD - Border Poly or bpoly command

Average Rating starstarstarstarstar

Click here to add your own comments

Oct 16, 2010
Rating
starstarstarstar 		Nice
by: Joe

Thanks, I didn't know. Very helpful
Jun 22, 2011
Rating
starstarstarstarstar 		Neat-O-Matic!
by: Mark

As with so many of these tips, I have vague memories of having read that somewhere, sometime, long ago, but apparently I forgot it soon thereafter.

Thanks for the reminder!
May 19, 2017
Rating
starstarstarstarstar 		Perfect!
by: Debalance

Great post! But unfortunately BPOLY is not fastest method of creating boundary polyline in AutoCAD. There is more powerful and effective free utility called SuperBoundary. It easily works with complex drawings and allows analyzing and generating thousands of boundaries in seconds.
